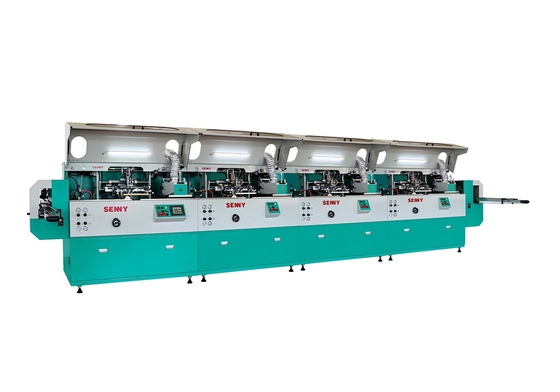

Fully Automatic Modular Bottle Screen Printer for Round Containers
Thông tin chi tiết sản phẩm:
| Place of Origin: | China |
| Hàng hiệu: | Senny |
| Chứng nhận: | CE SGS |
| Model Number: | SL1466 |
Thanh toán:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Giá bán: | negotiable |
| Packaging Details: | Plywood package |
| Delivery Time: | one month |
| Payment Terms: | T/T |
| Supply Ability: | 10pcs/month |
|
Thông tin chi tiết |
|||
| Auto Grade: | Fully Automatic | Plate Type: | Screen Printer |
|---|---|---|---|
| Printed Colors: | 1 To 12 | Printing Durability: | High Durability |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Chứng nhận: | CE SGS | Package Detials: | Plywood Package |
| Payment Terms: | T/T | ||
| Làm nổi bật: | modular cylindrical bottle screen printer,high-speed bottle screen printer,multifunctional round bottle printer |
||
Mô tả sản phẩm
Modular Cylindrical Bottle Screen Printer for Round Bottles with High-Speed Operation and Multifunctional Printing Line
Features:
The SRS699 CNC Container UV Screen Printing Machine is a fully automatic screen printing equipment for cylindrical and special-shaped containers, with an extremely wide range of applications. It can perform screen printing on various cylindrical and special-shaped containers such as plastic bottles, metal cans, glass jars, ceramic bottles, and stainless steel kettles. It is capable of printing thermosetting inks of various colors, meeting the container decoration needs of different industries including food and beverage, beauty and skin care, daily chemicals, and crafts. Whether it is a simple logo, an intricate pattern, or a gradient color effect, this machine can achieve high-precision and high-quality printing, ensuring that the printed patterns are clear and bright with strong adhesion.
Technical Specifications
| Machine running speed | Up to 100pcs/min |
| Product height | 20-300mm |
| Round bottle diameter | 20-120mm |
| Maximum printing area | length 300* height 200mm |
| Gas supply | 0.15mpa |
| Air pressure requires | 6-7 BAR |
| Voltage requirement | 3-phase 5-wire 380V 50/60Hz |
| Rated power | 7KW(1 color ) * N colors |
| Machine weight | Main machine-1200kgs; Auxiliary machine-1000kgs |
| Machine size |
Main machine-L 2900mm * W 1200mm * H 2000mm(excluding feeding and uploading convey belt) Auxiliary machine-L 1900mm * W 1200mm * H 2000mm |
Main functions:
It is equipped with a variety of functional configurations, including a gearbox feeding function to stably convey products to be processed; a robot vacuum directional feeding function to accurately complete the directional transfer of materials; a surface treatment function driven by the host speed-regulating motor, which can adjust the treatment intensity as needed; an electrostatic dust removal function to effectively remove static electricity and dust on the product surface; a flame surface treatment function to enhance the adhesion of the material surface; a pre-positioning function to ensure that the product is in an accurate position before printing; a container adjustable pressure inflatable printing function, which adapts to the printing needs of different containers by adjusting the inflation pressure; an automatic screen printing function to realize the automatic operation of the printing process; a motorized printing head lifting function to facilitate the loading and unloading of the screen; a screen motorized lifting function to facilitate the screen wiping operation; a high-intensity U.S. UV lamp curing function (optional LED-UV curing function) to ensure the rapid curing of printed patterns; a speed-regulating motor rotation function for cylindrical containers when passing through UV to ensure uniform curing; a robot vacuum unloading function to smoothly unload finished products; and an unloading speed-conveying function to flexibly adjust the conveying speed of finished products.

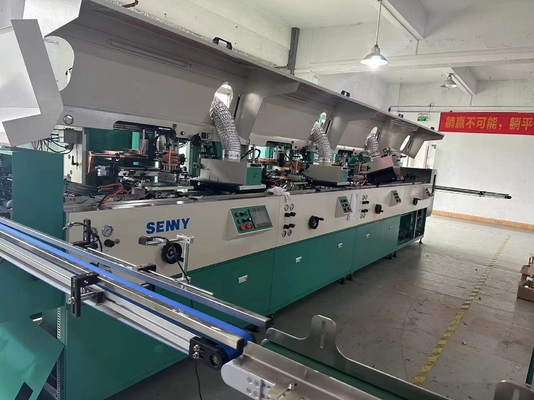

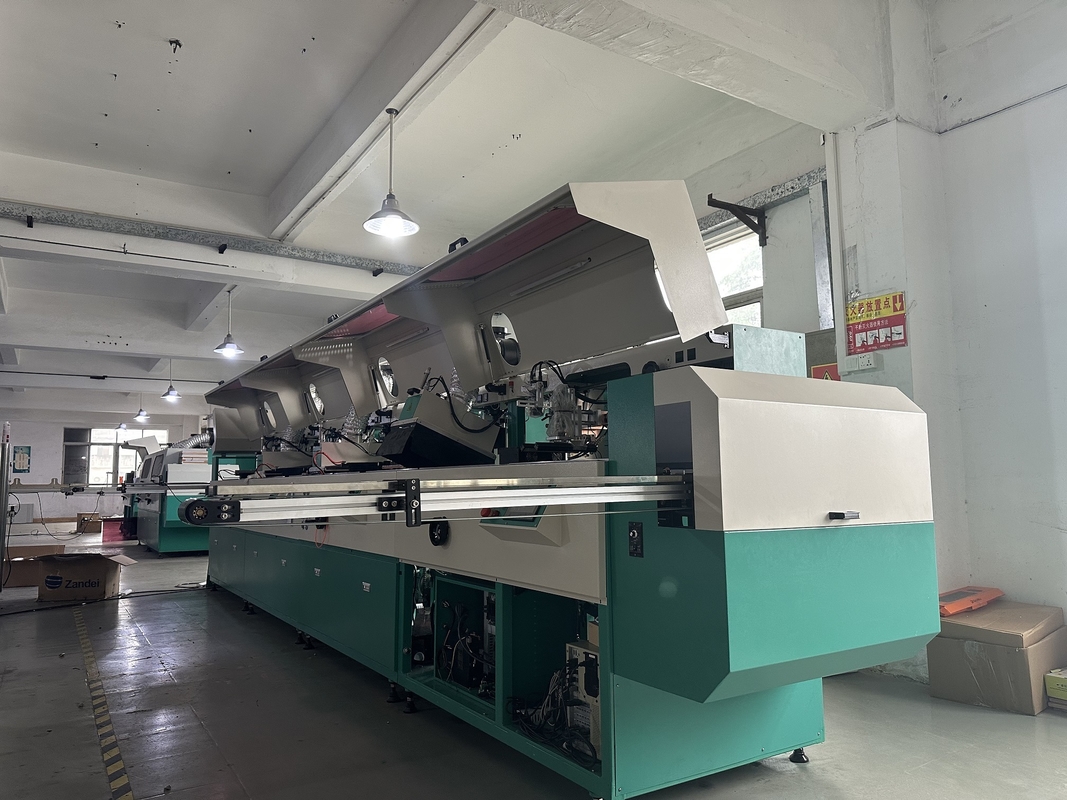

Customer Factory using our machine
Exihibition Show
About us
SENNY PRINTING EQUIPMENT CO.,LTD was established in the year 2004, it is specialized in designing and manufacturing precise automatic screen printing machines, stick labler machines, hot stamping machines and auxiliary equipments. Meanwhile, they can design any kinds of automatic printing machines according to customers' requirements.
SENNY has very good designers. The founder of SENNY was engaged in designing and developing screen printing machines early from the year 1994, and he got many achievements: he designed the first automatic screen printing machine; automatic screen printing machine for big iron pails; four colors sereen printing machine for big oil kettles; automatic screen printing machines controlled by module independently for bottles; automatic screen printing machine for pails from 10L 1o 20L(3colors and 7colors) and so on so forth.
In order to improve our products, SENNY adopts the advantages of the similar products in or abroad, and we also take customers' comments and suggestions into consideration. With the innovation and improvement for many years, the products produced by SENNY now are in a leading position in the domestic markets. And it also sales well all around the world.
With the mission“Excellence,Creation,Sincerity,Quality!”,SENNY insists on providing high--quality products and services, dedicating to exploring the new markets and seeking for mutual benefit and win-win state with our customers.
With years of development, Senny can provide premium quality automatic screen-printing machine, labelling machine, pad printing machine, hot-stamping machine and other printing packaging and services according to customers' special products and demands.
