Servo-Driven IR Linear Printing Machine For Plastic Bottle 70 Pcs/Min
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Dongguan Trung Quốc |
| Hàng hiệu: | SENNY |
| Chứng nhận: | CE SGS |
| Số mô hình: | SLS1588-IR5123 |
| Tài liệu: | Plastic Bottle printing mac...ne.pdf |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 1pc |
|---|---|
| Giá bán: | negotiable |
| chi tiết đóng gói: | Gói gỗ dán |
| Thời gian giao hàng: | 45 ngày |
| Điều khoản thanh toán: | T/t |
| Khả năng cung cấp: | 10 PC/tháng |
|
Thông tin chi tiết |
|||
| Mô hình máy: | SLS1588-IR5123 | In màu: | 1-8 màu sắc |
|---|---|---|---|
| Loại mực: | Mực hồng ngoại | Dịch vụ sau bán hàng: | Video hoặc trực tuyến |
| Động cơ: | Động cơ servo | Chi tiết đóng gói: | gói ván ép |
Mô tả sản phẩm

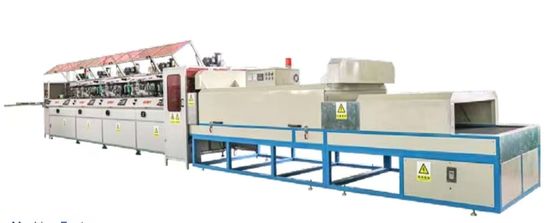

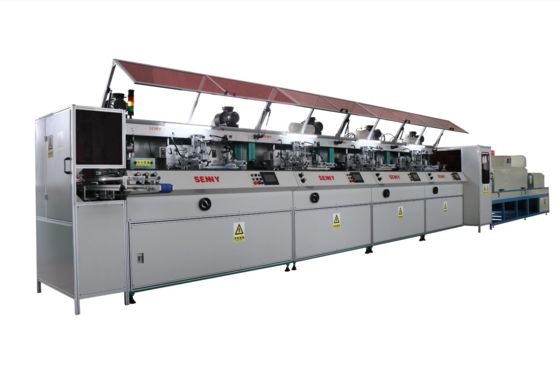

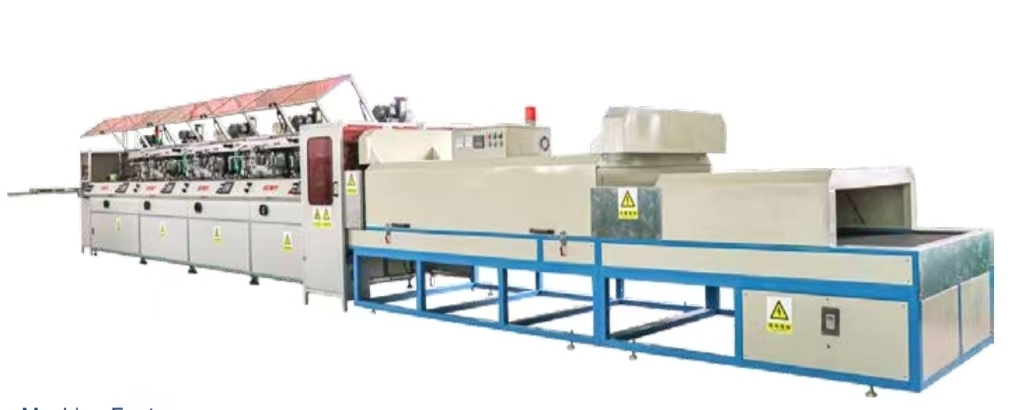

Servo-Driven IR Linear Printing Machine For Plastic Bottle 70 Pcs/Min
Machine Feature
- The machine is suitable for screen printing of various colors of IR ink on round, oval, square and other shapes of plastic bottles.
- The machine uses digital control servo motor to drive the printing function, easily realizes 360-degree printing. And it is
equipped with remote management and service functions(Industry 4.0).
- The machine adopts well-known brand electrical components, easy-to-use touch screen and PLC control system, with reliable performance.
- The machine adopts a highly customizable modular structure, which can be connected in a straight line to be a 1-8 color printing machine.
- The standard configuration of the machine is a screen printing and IR curing module, and you can choose to connect independent hot stamping, labeling, quality inspection and other modules to form a multi-functional printing machine.
- After the product printing is completed, it is discharged by the manipulator and arranged in a row into the constant temperature drying tunnel furnace to completely cure the ink.
Optional Configuration
- Plasma surface treatment function.
- Hot stamping function.
- Labeling function.
- LED-UV curing function.
Technical Parameters
| Machine Model | SLS1588-IR5123 | SLS1888-IR5123 |
| Max.Printing Length | 250mm | 250mm |
| Max.Printing Height | 200mm | 200mm |
| Bottle Height | 50-280mm | 50-280mm |
| Diameter at 360 degree | 20-140mm | 20-140mm |
| Printing Speed | Up to 50 pcs/min | Up to 50 pcs/min |

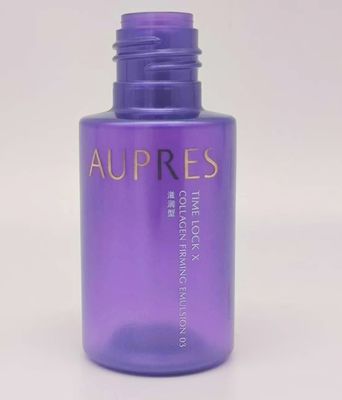

Printing Sample
About us:
Senny caters to the food, pharmaceutical, toy, cosmetics, daily chemical, electronics, and decorative product industries—plus more. Leveraging automatic printing technologies (including screen printing, pad printing, hot stamping, labeling, offset printing, and digital printing), it delivers high-quality, detailed graphics and text on products of different shapes, such as plastic, metal, glass, and ceramics.
Since 1994, Senny has stuck to its business philosophy: delivering quality products and services to customers. It uses top-tier electrical control parts and materials for R&D and production, while constantly enhancing printing quality on diverse products to meet the growing market demands for high-quality packaging.
