Innovative Caps Printing Machine With UV Curing System And LED Curing System For Plastic Products
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | Senny |
| Chứng nhận: | CE SGS |
| Số mô hình: | SR818-D |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 1 bộ |
|---|---|
| Giá bán: | negotiable |
| chi tiết đóng gói: | Gói gỗ dán |
| Thời gian giao hàng: | Một tháng |
| Điều khoản thanh toán: | T/t |
| Khả năng cung cấp: | 10pcs/tháng |
|
Thông tin chi tiết |
|||
| Tự động: | Hoàn toàn tự động | In màu: | 1 màu |
|---|---|---|---|
| In độ bền: | Độ bền cao | Tình trạng: | Mới |
| Bảo hành: | 1 năm | Dịch vụ sau bán hàng: | Video hoặc trực tuyến |
| Điều khoản thanh toán: | T/t | Gói chi tiết: | Gói gỗ dán |
| Cercification: | CE SGS | ||
Mô tả sản phẩm

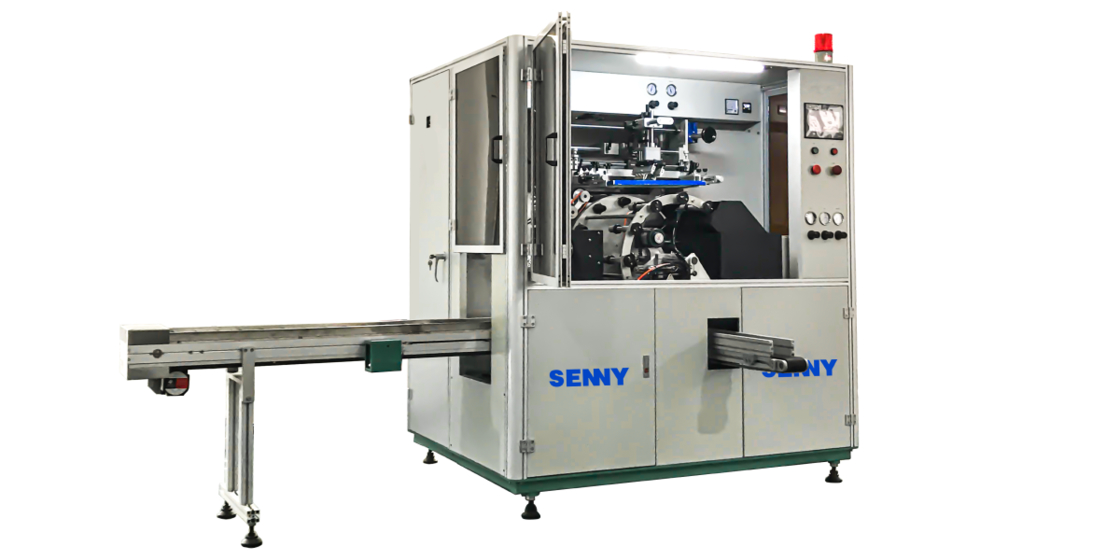

Innovative Caps Printing Machine With UV Curing System And LED Curing System For Plastic Products
Round Jar & Cap printing machine.pdf
Machine Features:
Automatic Feeding System
The machine can be installed according to the customer's needs and is equipped with a variety of automatic feeding systems, such as vibrating trays and rotary feeders.
Surface Treatment System
The machine can be installed with surface treatment system separately according to customers' needs, which can effectively solve the surface treatment problems of various plastic products, easy to operate and meet different needs.
Plastic products generally need surface treatment before printing to destroy the molecular structure of the surface and enhance the adhesion of the printed pattern; there are two kinds of surface treatment processes, one is flame treatment and the other is corona treatment.
No Part No Print System and Adjustable Printing Head System
If the machine realizes that there is no product on the transfer, the printing system will not work when the fixture reaches the printing position.
Depending on the product, the printing head stroke and the angle of the initial printing action can be adjusted to achieve the best printing results.
UV Curing system / LED Curing system
Customers can choose different curing systems according to their needs.
UV curing technology is mature, low lamp replacement cost, low maintenance cost.
Compared with traditional high-pressure mercury lamps, LED curing is characterized by soft light output, long life, energy saving, safety and environmental protection, wide irradiation area, small space occupation, and uniform light spot, etc. However, its disadvantage is the high maintenance and replacement cost.
Machine Parameters:
| Model | SR818 | SR818-3S |
| Work Station | 8 | 8 |
| Printing Speed | Up to 50pcs/min | Up to 60pcs/min |
| Product Diameter | 20-80mm | 20-80mm |
| Product Height | 20-60mm | 20-200mm |
| Max Printing Length | 250mm | 250mm |
| Max Printing Height | 60mm | 160mm |

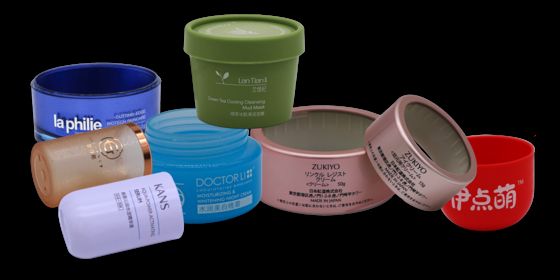

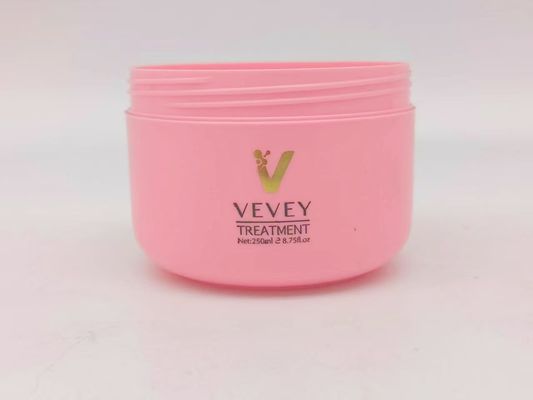

Applications
