CNC Automatic UV Curing Printing Machine with 360-Degree Printing and 1 Year Warranty for Bottle And Tube
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Dongguan Trung Quốc |
| Hàng hiệu: | SENNY |
| Chứng nhận: | CE SGS |
| Số mô hình: | SRS829 |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 1pc |
|---|---|
| Giá bán: | negotiable |
| chi tiết đóng gói: | Gói gỗ dán |
| Thời gian giao hàng: | 45 ngày |
| Điều khoản thanh toán: | T/t |
| Khả năng cung cấp: | 10 PC/tháng |
|
Thông tin chi tiết |
|||
| Mô hình máy: | SRS829 | In màu: | 2 màu |
|---|---|---|---|
| Thương hiệu: | Senny | Dịch vụ sau bán hàng: | Video hoặc trực tuyến |
| Chứng nhận: | CE SGS | Bảo hành: | 1 năm |
| Các ngành công nghiệp áp dụng: | Cửa hàng in ấn, nhà máy sản xuất, đồ gia dụng, công nghiệp, công ty quảng cáo | ||
| Làm nổi bật: | CNC automatic UV curing printing machine,2-color screen printing machine for bottles,45 Pcs/Min tube printing machine |
||
Mô tả sản phẩm

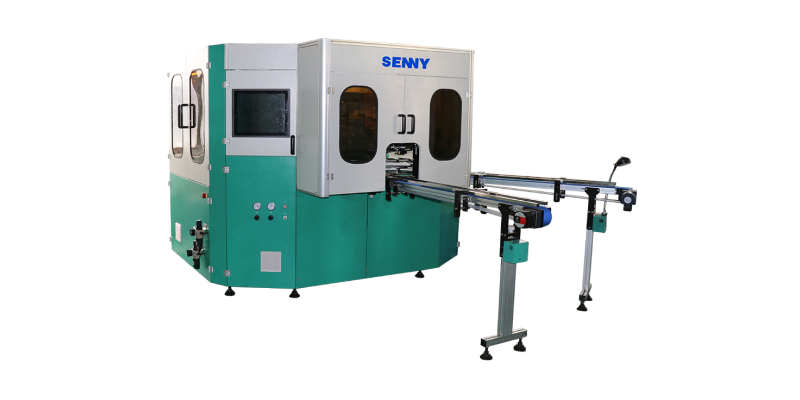

- Product Description 2-Color 45 Pcs/Min CNC Automatic UV Curing Printing Machine For Bottle And Tube
Machine Feature
-
The machine is suitable for screen printing various colors of UV ink,hot stamping and other decorations on bottles,jars,caps and other shapes of products,which are made of plastic,metal,glass and other materials.
-
The machine is specially developed for small container printing,with compact structure and small footprint.
-

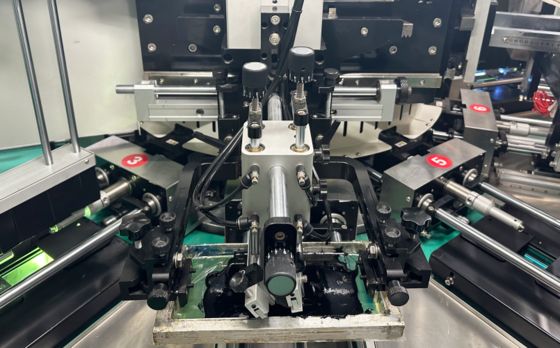

The machine adopts an integrated turntable design,all printing functions are completed in the same set of fixture,the printing accuracy is as high as ± 0.1 mm ,and the product won't be scratched.
-
The machine is driven by digital control servo motor to realize 360-degree printing of products,equipped with remote management and services functions(industry 4.0)
Optional Configuration:
- LED-UV curing system.
- Hot stamping function.
- Finished product quality inspection function.
- Plasma surface treatment function.
- Visual registration function.
Technical Parameters:
| Machine Model | SRS829 |
| Work Station | 2 |
| Diameter at 360 Degree | 13-60mm |
| Container Height | 20-200mm |
| Max.Printing Length | 200mm |
| Max.Printing Height | 160mm |
| Printing Speed | Up to 45 pcs/min |

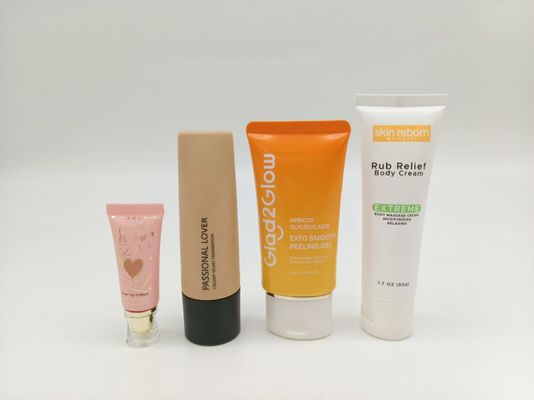

Printing Sample

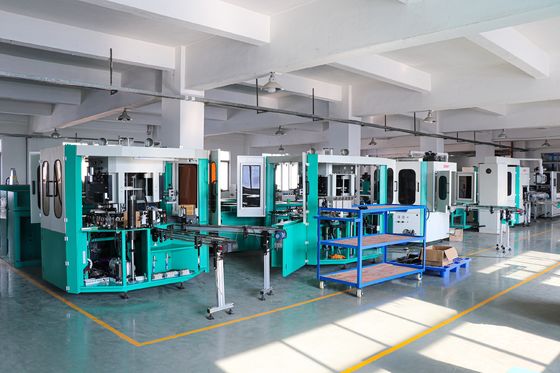

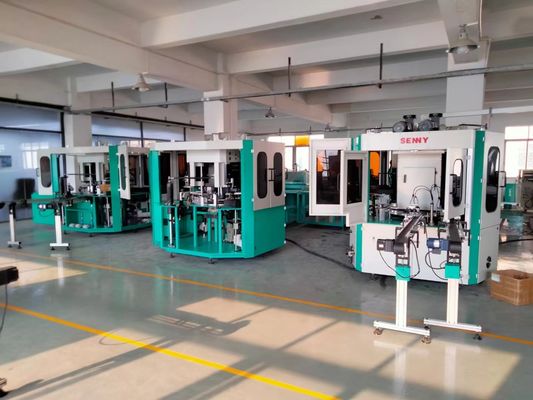

Our Factory and machines:
The differences between linear screen printing machine and CNC rotary screen printing machine:
- The linear printing machine has a faster printing speed than the rotary printing machine, but its printing precision is lower in comparison.
- The linear printing machine adopts a modular design: the more colors need to be printed, the larger the machine becomes, while the rotary printing machine is more space-saving.
- CNC printing machines are more conducive to remote management and service.
- All printing functions of a CNC printing machine are completed with the same set of fixtures, which can avoid wear and tear.
- CNC silk screen printing machines can adjust parameters such as the printing head via a wireless touchscreen, while linear printing machines require manual adjustment.
